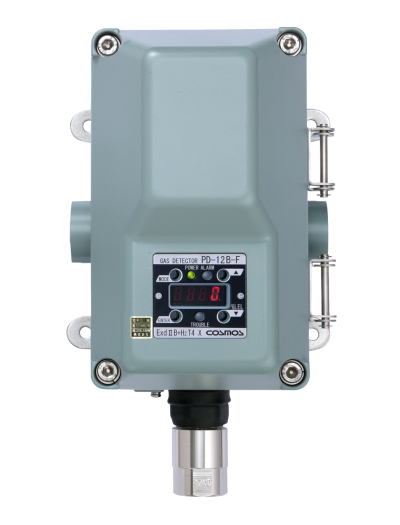

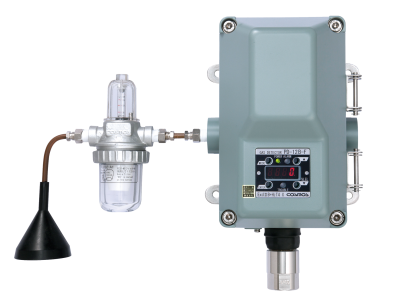

PD-12 Series

Suction Type Gas Detector Head with Display

Features

Features

  • การตรวจจับแก๊สที่หลากหลาย : รองรับการตรวจจับแก๊สติดไฟและแก๊สพิษหลายชนิด พร้อมปั๊มในตัว เหมาะสำหรับการใช้งานในอุตสาหกรรมและพื้นที่ที่เข้าถึงยาก
  • หน้าจอแสดงผลดิจิตอล : แสดงค่าความเข้มข้นของแก๊สและสถานะแจ้งเตือนผ่านหน้าจอ LED ดิจิตอล 4 หลัก
  • ขนาดกะทัดรัดและน้ำหนักเบา : ง่ายต่อการติดตั้งทั้งภายในและภายนอกอาคาร
  • ป้องกันการระเบิด : ได้รับการรับรองมาตรฐาน ATEX
  • มาตรฐาน IP : ระดับการป้องกัน IP65

รุ่นที่มีให้เลือก :

  • PD-12A : ใช้เซ็นเซอร์ Hot wire semiconductor สำหรับการวัดในช่วง ppm
  • PD-12B : ใช้เซ็นเซอร์ Catalytic Combustion สำหรับการวัดในช่วง %LEL
  • PD-12C : ใช้เซ็นเซอร์ Thermal Conductivity สำหรับการวัดในช่วง vol%

Specifications

ModelPD-12APD-12BPD-12C
Target GasCombustible Gas / Toxic Gas
Sensor TypeHot wire semiconductorCatalyticThermal Conductivity
Detection Rangeppm%LELVol%
Detection MethodPump suction type
Flow RateOver 0.5 L/min
Alarm Set ValueSet to user specifications
Alarm Accuracy
  • Combustible gas: ±25% of alarm set value under stable conditions
  • Toxic gas: ±30% of alarm set value under stable conditions
Alarm Delay
  • Combustible gas: within 30 seconds at 1.6 times the alarm set value concentration
  • Toxic gas: within 60 seconds at 1.6 times the alarm set value concentration
Alarm Display
  • Gas alarm: Red LED lamp flashing
  • Trouble alarm: Yellow LED lamp flashing (sensor disconnection, sensor zero drop, power voltage abnormality, etc.)
Gas Concentration DisplayLED display: 4-digit digital display
External Outputs
  • Gas concentration analog signal: DC4-20mA (shared with negative power source)
  • Gas alarm contact or faulty contact*1 : 1a non-voltage contact/ automatic return
    (Rated load: AC250V 0.5A or DC30V 0.5A (resistive load))
ApprovalsExplosion Proof
II2G Ex d IIB + H2 T4 Gb (ATEX)
Ex d IIB + H2 T4 X (Japan Ex)
Protection RatingIP65
Method of Operation4 magnetic switches
Compatible CablesCable outer diameter: Ø11 to Ø15
6-core shielded cable: CVV- S1.25mm2 or 2.0mm2
Power SupplyDC24V (±20%)
Power ConsumptionMaximum 7.5W
Operating Temperature and HumidityTemperature: -10 to 50°C
Humidity: 10 to 90% RH (0 to 50°C)
External DimensionsW133×H289×D132 mm (excluding protrusions)
WeightApprox. 5.2 kg
OptionalFlow rate drop detection function (warning at 0.3L/min or less)



*1 The gas alarm contact is configured as standard. If you require fault contact functionality, a specific request must be made.
