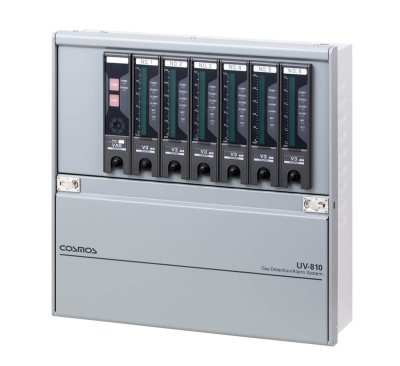

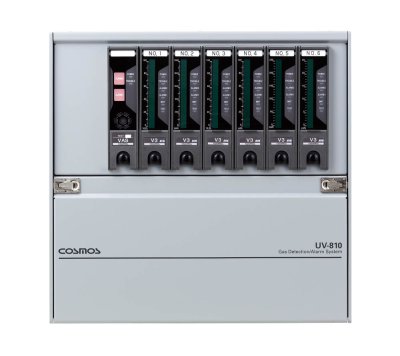

Model | UV-810 | UVB-810 |
Number of Indicator Unit Connections | Up to 15 points (Case lineup: 3/6/9/12/15 points type) | 3/6 points type |
External Outputs | Group alarm terminal - 1st stage alarm contact no voltage 1a (standard) (AC100V 1A, DC24V 1A resistive load)
- Second stage alarm contact no voltage 1a (standard) (AC100V 1A, DC24V 1A resistive load)
- Buzzer contact no voltage 1a (standard) (AC100V 1A, DC24V 1A resistive load) - Trouble contact no voltage 1a (standard) (AC100V 1A, DC24V 1A resistive load) * The contact be changed to 1b contact(specify). Individual alarm terminals - 1st stage alarm contact no voltage 1a (standard) (AC250V 2A, DC24V 2A resistive load)
- Second stage alarm contact no voltage 1a (standard) (AC250V 2A, DC24V 2A resistive load)
Individual analogue signal output terminals - Gas concentration analogue signal(4-20mA) (0.9mA or less when a trouble alarm occurs) The load resistance of the analogue signal, including the wiring resistance, must be 300 or less.
|
External Input | External alarm reset terminal, external alarm stop terminal (non- contact) |
Protection Rating | IP2X when installed |
Power Supply | - AC100V-240VÂą10% [50/60Hz]
*If the pump is power source by AC, the power source is AC100V
- DC24VÂą10% (must be specified)
| - AC100V-240VÂą10% [50/60Hz]
|
Power Consumption | - AC input (100V to 240V)
power consumption(VA) = (V3ÃnïžVAS)Ã1.25 (SW power source loss)
- DC input (24VÂą10%)
power consumption (W) = V3 Ã n + VAS *n=number of V3 connections V3 includes power consumption of the detector head
| power consumption(VA) = (V3 x number of connections + VAS + 18) x 1.25 (SW power source loss) *V3 includes power saving for the detector head |
Backup Power Supply | - | - Battery used: Small valve-regulated lead-acid battery 12V x 2
- Backup time: 30 minutes or more / charge time: 24 hours or more
|
Operating Temperature | -10 to +40°C, 10 to 90% RH (No sudden changes in temperature or humidity, no condensation) | 0 to +40°C , 10 to 90% pH |
Weight | (3-point) Approx. 5.5kg (15-point) 13.5kg *Alarm unit and indicator unit unit included | (3-point) Approx. 8kg (6-point) Approx. 16kg *Alarm unit and indicator unit unit included |
External Dimensions | Depends on the number of units |
Accessories | Current fuse | Current fuse x 2 |
