Specifications

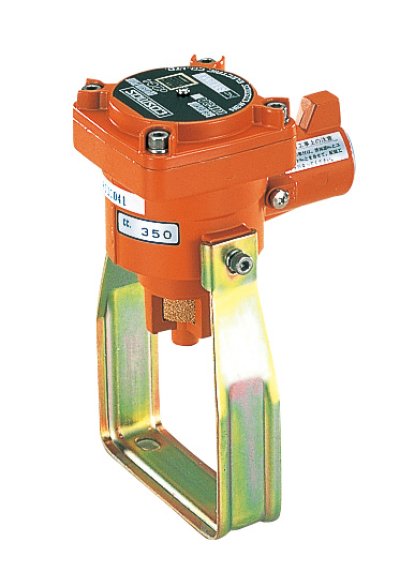

Model | KD-2A | KD-3A | KD-2AS-NH3 |
Target Gas | Combustible Gas | Ammonia (NH3) | |
Sensor Type | Hot wire semiconductor / Catalytic / Thermal Conductivity | Semiconductor | |
Detection Method | Diffusion type | ||
Detection Range | According to separate specifications | ||
Compatible Cables | 4-core shielded | ||
Extendible distance | 1km (with 2mm2 cable) | ||
Explosion Proof | d2G4 | d3acG4 d3cG4 | d2G4 |
Power Supply | Supplied from indicator unit | ||
Operating Temperature and Humidity | -10°C~40°C 10 to 85 %RH | ||
External Dimensions | W144×H180×D100 mm (excluding protrusions) | ||
Weight | Approx. 1.2 kg |
