Features
รุ่นที่มีให้เลือก :
Specifications

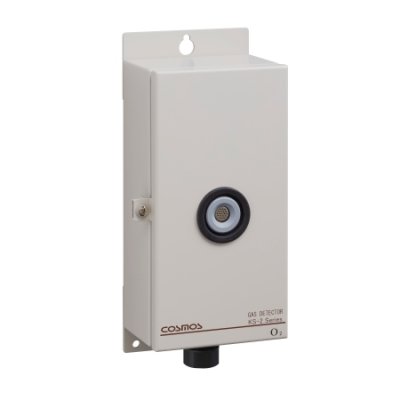

For Oxygen
Model | KS-2O-N | KS-2O-Ex |
Target Gas | Oxygen | |
Sensor Type | Diaphragm galvanic cell | |
Detection Method | Diffusion type | |
Detection Range | According to separate specifications | |
Compatible Cables | 2-core shielded | |
Extendible distance | 1km or less (with 2mm2 cable) | 500m or less (with 2mm2 cable) *Varies depending on cable specifications |
Explosion Proof | Non-Explosion-proof | Ex ia IIC T5 X (using Zener barrier) |
Power Supply | Supplied from indicator unit | |
Operating Temperature and Humidity | Temperature: 0°C~40°C Humidity: 30 to 85 %RH | |
External Dimensions | W102×H200×D75 mm (excluding protrusions) | |
Weight | Approx. 1.5 kg |
For Toxic Gas
Model | KS-2D-N | KS-2D-Ex |
Target Gas | Toxic Gas | |
Sensor Type | Electrochemical cell | |
Detection Method | Diffusion type | |
Detection Range | According to separate specifications | |
Compatible Cables | 2-core shielded | |
Extendible distance | 1km (with 2mm2 cable) | 500m or less (with 2mm2 cable) *Varies depending on cable specifications |
Explosion Proof | Non-Explosion-proof | Ex ia IIC T5 Ga / Ex ia IIC T5 X (with Zener barrier) (depending on installed sensor) |
Power Supply | Supplied from indicator unit | |
Operating Temperature and Humidity | Temperature: 0°C~40°C Humidity: 30 to 85 %RH | |
External Dimensions | W102×H200×D75 mm (excluding protrusions) | |
Weight | Approx. 1.5 kg |
